| Zooming |
contents |
| Zooming tools and scrollbars let you navigate trough the layout of Objects. |
Activation
Methods
Menu Zoom or Toolbar Buttons
Fit on Screen Usage
Fit whole Canvas to Screen
Zoom Selection usage
Select area to Zoom in
 Zoom in Usage
Zoom in by steps of 33%
 Zoom Out Usage
Zoom out by steps of 33%
 Fit Original Size Usage
Fits the Canvas to 100%
|

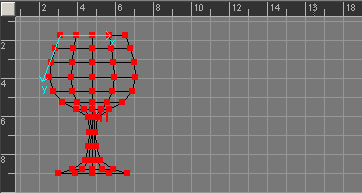

Zoom 66%

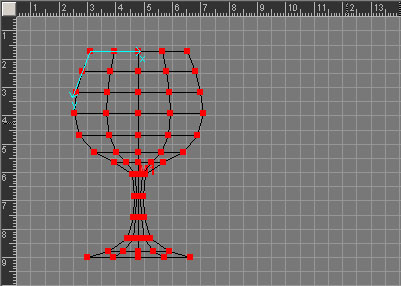

Zoom 100%

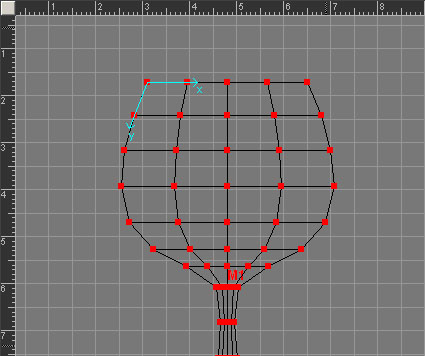

Zoom 133% |
| |
| Navigator |
contents |
| The Navigator gives a general view of the Object layout |
Activation Methods
Menu Window > Navigator
or
Toolbar Button
Usage
Drag the red rectangle to navigate the layout of
Objects in Viewport
Use the slider to change Zoom Value
Notes
The maximum Zoom Value depends on the Canvas Size.
The Canvas Size is limited to 16.384x16.384 pixels
|

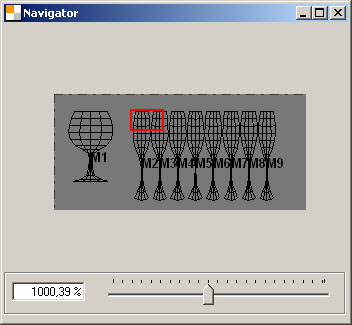

Navigator Window
|
|

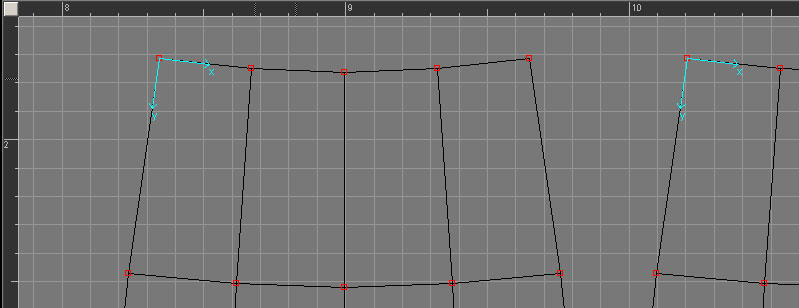

Viewport view of Object layout shown in Navigator
|
| |
